When it comes to precision mold manufacturing and heavy industrial tooling, the Topedm MP-435 ZNC Die Sinking EDM machine remains an indispensable workshop asset. Today, as part of the ETENWOLF heavy machinery and hardware spotlight series, our application engineering team will dissect this classic workhorse running at high frequency across global workshops. Consisting of the DF-435 machine tool and the MP-50 intelligent power supply generator cabinet, we bring you the most detailed, real-world electromechanical parameters and field maintenance data.
Core Anatomy: The Configurations of Topedm MP-435

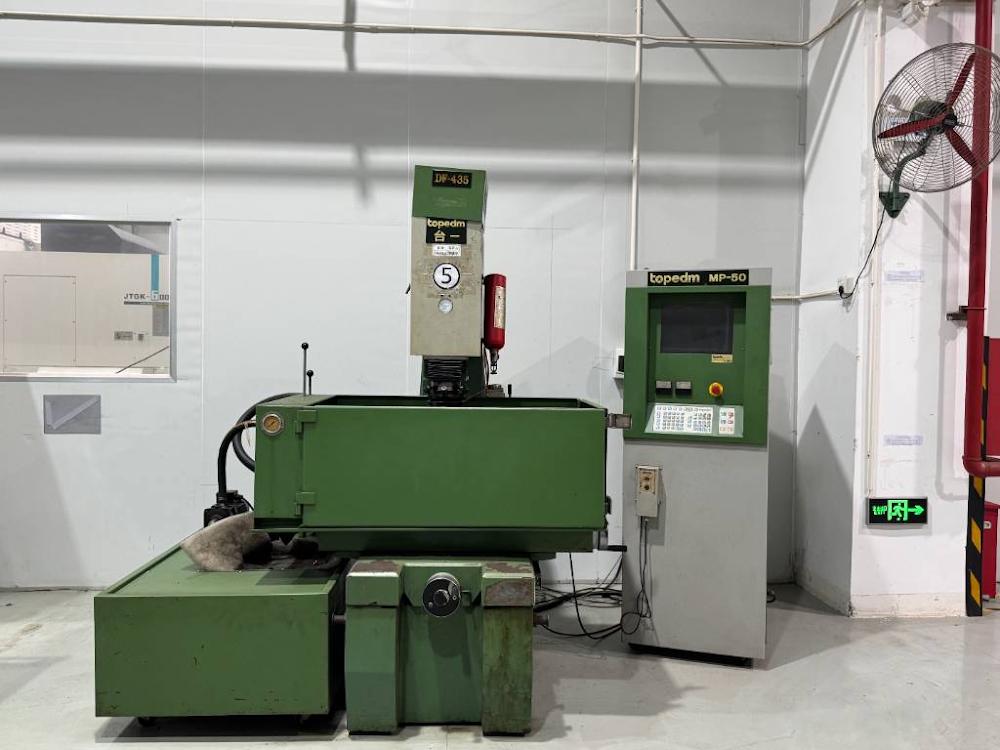

Many novice operators or procurement staff often get confused by the multiple engineering plates riveted onto the chassis. As ETENWOLF mechanical experts frequently emphasize, the Topedm MP-435 is a perfect electromechanical coupled system divided into three modules:
- Machine Tool (DF-435): The main mechanical structure on the left, which determines the loading capacity and the 3-axis travel of the worktable.
- Power Supply Generator Cabinet (MP-50): The independent green cabinet on the right, which determines the maximum discharge current and processing efficiency.
- CNC Axis Card Core (X-200): Embedded inside the monitor display, this system controls the 3-axis linear scales and the ZNC single-axis automatic discharge control.
Real Technical Data: Topedm MP-435 / MP-50 Specifications
To assist mold designers and production managers in accurately evaluating shopfloor processing capabilities, the ETENWOLF engineering team has compiled the verified physical and electrical parameters from the manufacturer’s technical blueprint manual:
Mechanical Structure & Travel Specifications (DF-435 Machine Tool)
| Key Parameter | Verified Real Data | Application & Scenario Notes |
|---|---|---|
| Work Tank Internal Size (L×W×H) | 1065 × 640 × 450 mm | Determines the maximum size of the mold base for submerged machining. |
| Work Table Size | 700 × 400 mm | Wide cast iron T-slot table, convenient for clamping and fixtures. |
| X / Y Axis Travel | 450 / 350 mm | Perfectly covers small-to-medium plastic molds and inserts. |
| Z Axis (Spindle) Travel | 200 mm | The maximum vertical stroke for spindle retraction and jumping. |
| Max. Electrode Weight | 120 kgs | Supports heavy copper (copper electrode) or graphite electrodes. |
| Max. Workpiece Weight | 900 kgs | High-rigidity HT300 cast iron base ensures no deformation under heavy loads. |
2.Electrical & Discharge Performance (MP-50 Generator Cabinet)
- Max. Machining Discharge Current: 50A (Amperes).
- Max. Metal Removal Rate: 400 mm²/min (Under rough machining state with high current).
- Min. Electrode Wear Ratio: ≤ 0.1% (Utilizing Topedm’s proprietary low-wear circuit technology).
- Best Surface Roughness (Ra)：0.8 μm (Capable of achieving highly delicate spark finish textures).
- Machining Programs: 19-segment intelligent machining program (Input the workpiece material and target depth, and the system automatically matches the current decrement parameters from roughing to ultra-finishing).
Key Advantages: Why the MP-435 is an Industry Evergreen
1.Classic Dual-Pointer and One-Button Layout

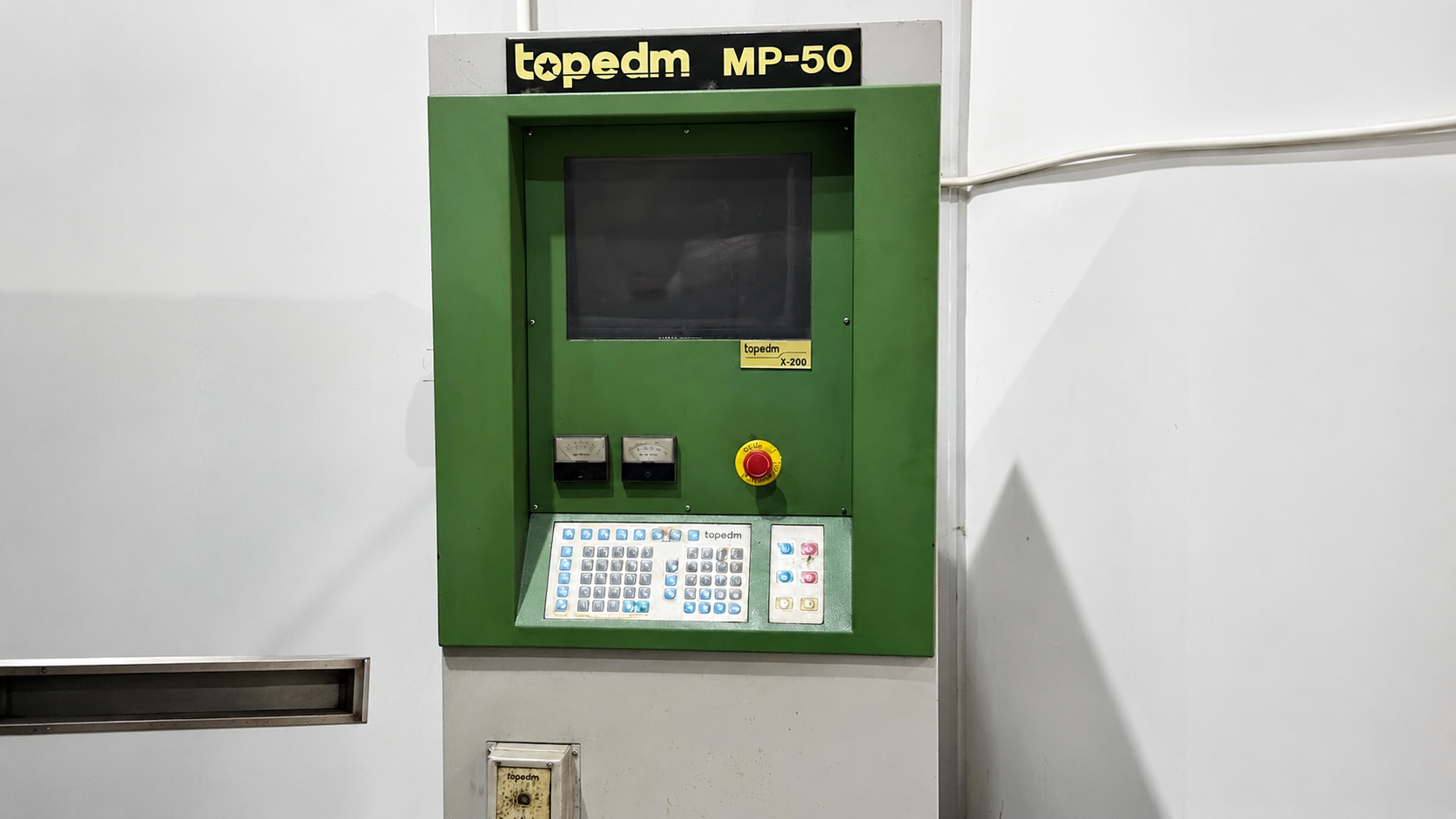

The Topedm MP-50 cabinet panel retains a highly classic layout of dual analog pointer meters for voltage and current. Compared to pure digital displays, ETENWOLF diagnostic specialists prefer this configuration because engineers can instantly judge whether there is carbon accumulation, short circuits, or arc discharge anomalies by observing the swing amplitude of the pointers. The red mechanical Emergency Stop button also provides the highest level of safety redundancy.
2.Unique Intelligent Two-Stage Jumping Control
Designed specifically for deep cavity and large-area electrode machining, this model features exclusive algorithms:
1.Programmable High-Low Jumping: During deep slot or deep hole machining, the spindle can lift at high speed, creating a powerful liquid suction effect to smoothly flush out carbon sludge, effectively preventing carbon arc burns.
2.Slow-to-Fast Two-Stage Jumping: Stabilizes oil pressure during large electrode processing, resulting in a uniform surface finish.
3.X and Y Axis Position Abnormality Protection
During machining, if an operator accidentally bumps the handwheel, causing an X or Y-axis displacement exceeding 0.002 mm, the X-200 controller will immediately force-stop the discharge, preventing workpiece scrap to the maximum extent.
Engineer’s Routine: Safety Operations and Maintenance Guide

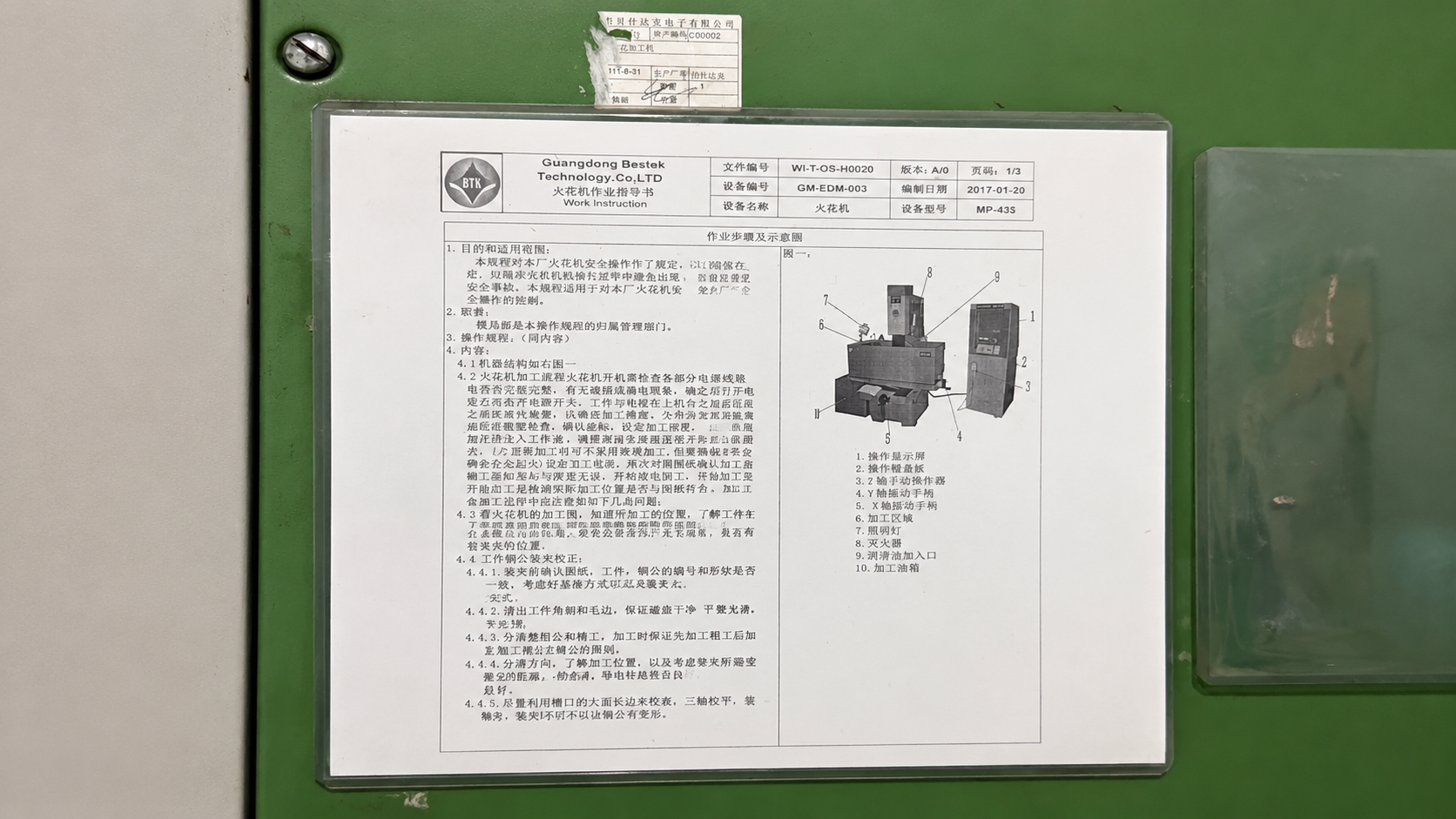

According to standard Factory Work Instructions, operators must strictly adhere to the following rules verified by ETENWOLF safety standards when operating the Topedm MP-435 to extend machine life and ensure fire safety:
1.Dielectric Fluid Level Monitoring: Before EDM processing, the insulation fluid (EDM oil) inside the work tank must be at least 50mm above the workpiece surface. Air discharging is strictly prohibited as it triggers fire hazards.
2.Inspect the Automatic Fire Extinguisher: The red fire extinguisher bottle and its pressure gauge mounted next to the spindle must be checked every shift to ensure the thermal sensor probe is fully functional.
3.Dust and Moisture Prevention: The MP-50 generator cabinet contains numerous transistors and control boards. Avoid blowing oil mist or metal dust into the cabinet. It is recommended to clean the dust filter at the bottom of the cabinet every quarter.
Conclusion and Used Machine Buying Tips
As a classic but highly mature ZNC die sinking EDM machine, the Topedm MP-435 (DF-435 tool + MP-50 cabinet) has extremely high liquidity in the used machinery market. If you plan to buy a secondhand Topedm machine, ETENWOLF recommends inspecting:
- The wear condition of the Z-axis ball screw and linear guide (which directly affects retraction accuracy).
- Whether the MP-50 cabinet encounters overheating or power instability when the discharge current exceeds 40A.
With proper maintenance, this industrial veteran will continue to deliver excellent 0.005mm precision machining for your workshop!
