ETENWOLF Integrating Sphere System

In the pursuit of product excellence, high-precision industrial testing equipment serves as an indispensable cornerstone. Inside the professional testing laboratory of ETENWOLF, a suite of high-performance instruments is actively serving strict quality control workflows. Today, we take you on a site visit to explore this core optical testing setup—the LED Optical, Color, and Electrical Standard Test System, deeply analyzing its hardware configuration, authentic specifications, and industrial applications.

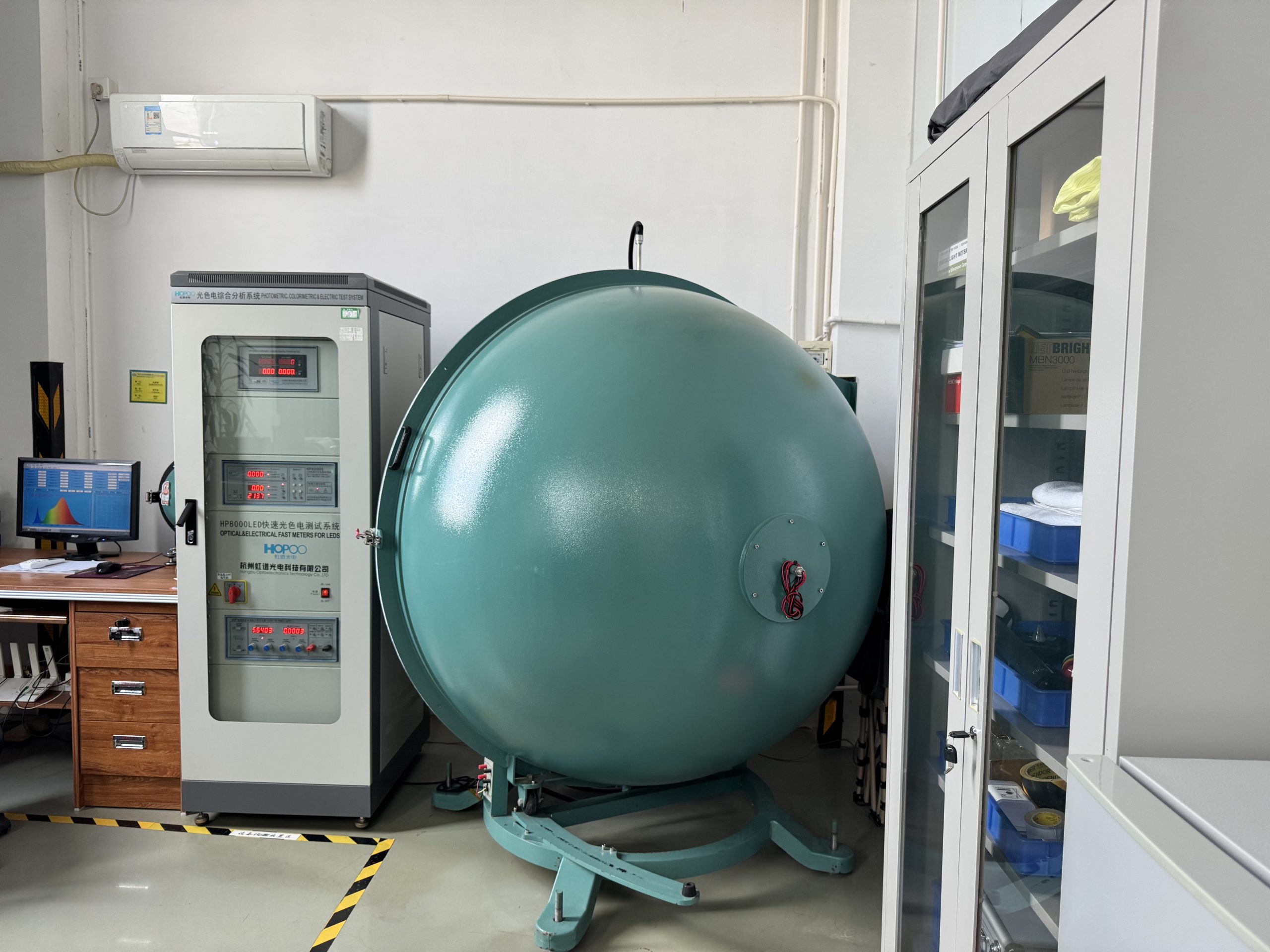

Positioned at the ETENWOLF laboratory testing station, this system consists of two core industrial modules, exhibiting a standard modular industrial stack design.

Through the crisp silk-screened silk markings and orange-red Chinese characters on the middle panel of the cabinet, we can directly verify the authentic model and parameters of this machine:

1.Test Mainframe: Model HP8000LED, classified as “OPTICAL & ELECTRICAL FAST METERS FOR LEDS”. It integrates high-precision digital electrical measurement modules with a high-speed spectrometer, serving as the control brain of the entire setup.

2.Large Integrating Sphere: The massive teal-green sphere on the right. Its interior is coated with high-reflectivity diffuse material, specifically designed to collect the total luminous flux emitted by the light source under test.

3.PC-Based Spectral Data Analysis System: A computer workstation located to the left of the cabinet.

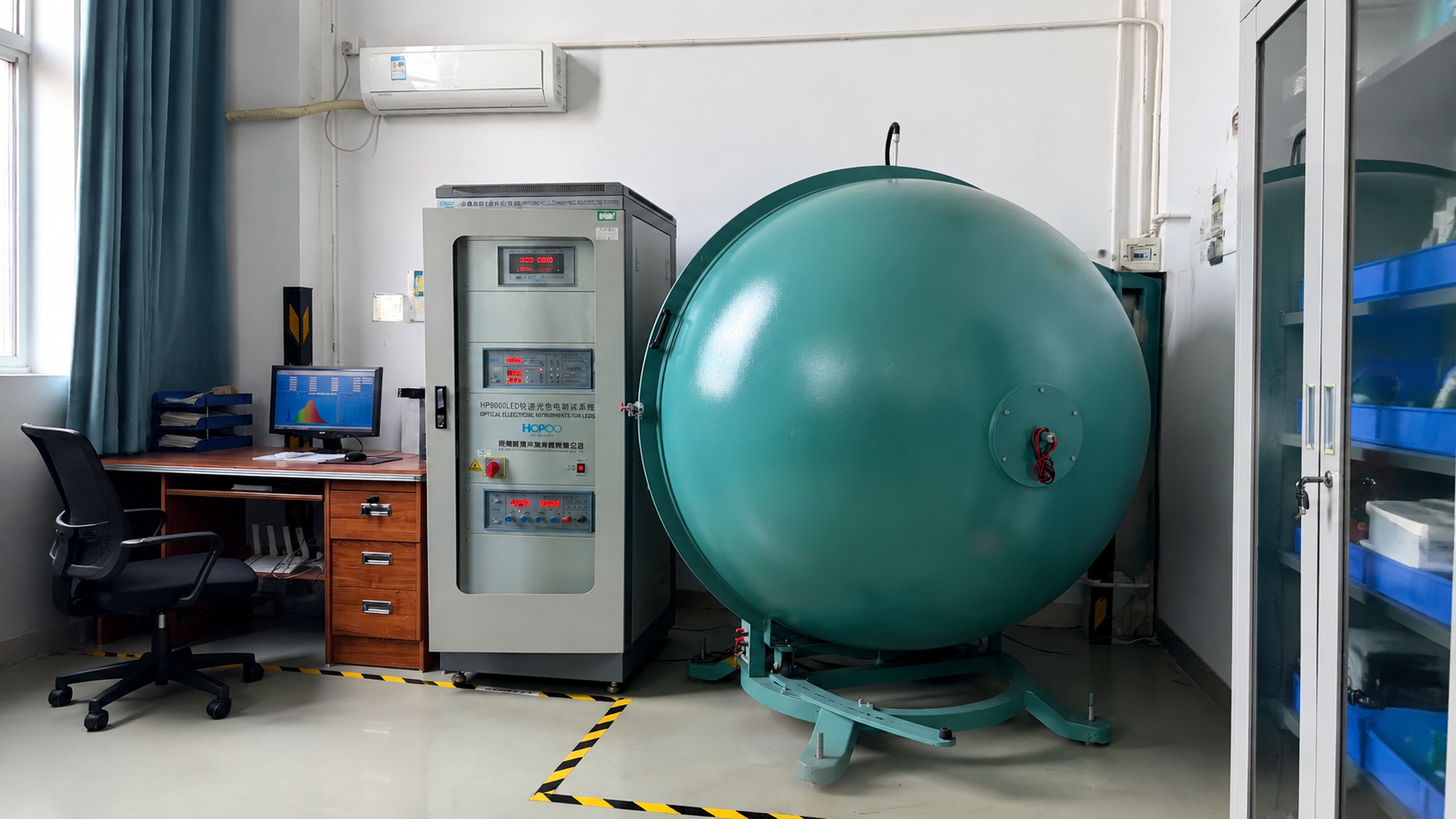

When the equipment is running, the computer monitor renders a vibrant, colorful Relative Spectral Power Distribution Chart (Spectrum Curve) in real-time, translating abstract light rays into precise, digitized optical metrics.

Utilizing this high-precision HP8000LED system, ETENWOLF can capture and evaluate the real-world performance of product light sources across three critical dimensions with a single click:

• Photometric Parameters: Accurately measures Total Luminous Flux (Lumens, lm) and Luminous Efficacy (lm/W) to guarantee product brightness aligns with design standards.
• Colorimetric Parameters: Analyzes Correlated Color Temperature (CCT), Color Rendering Index (Ra/CRI), Chromaticity Coordinates (x, y), and Standard Deviation of Color Matching (SDCM) to strictly control color consistency across mass production and eliminate color variation.
• Electrical Parameters: Monitors Forward Voltage (V), Forward Current (I), and Power Consumption (W) to ensure electrical circuit safety and power stability.

As shown in the close-up shot, the hardware layout of this industrial-grade cabinet is highly rigorous:

• Top and Bottom Modules: Equipped with multiple dual-row red LED digital display screens to provide real-time feedback on high-precision electrical parameters and measurement ranges.
• Middle Control Panel: Features an independent red rocker power switch. Below the cabinet are dense band/range adjustment knobs and pluggable physical interfaces, allowing technicians to make fine-tuned calibrations.
• Integrating Sphere Latching Mechanism: Heavy-duty metal toggle clamps (clamping lock mechanisms) are engineered on the rim of the green sphere, guaranteeing a perfect, light-tight sealed environment when closed.

High-precision hardware equipment forms the backbone of a quality promise. By introducing industrial-grade optical, color, and electrical comprehensive testing systems like the HP8000LED, ETENWOLF achieves digitized, standardized management over the optical and electrical performance of its products.
