Behind the Scene: How ETENWOLF Retrofits the Classic Guangzhou C6132A₁ Lathe

Whether conquering extreme outdoor elements or facing intense indoor machining production, ETENWOLF always respects precision craftsmanship. In this exclusive deep-dive, we break down the authentic nameplate specifications of the Guangzhou C6132A1 lathe and share how we combine robust old-school iron with premium ETENWOLF modern technology.

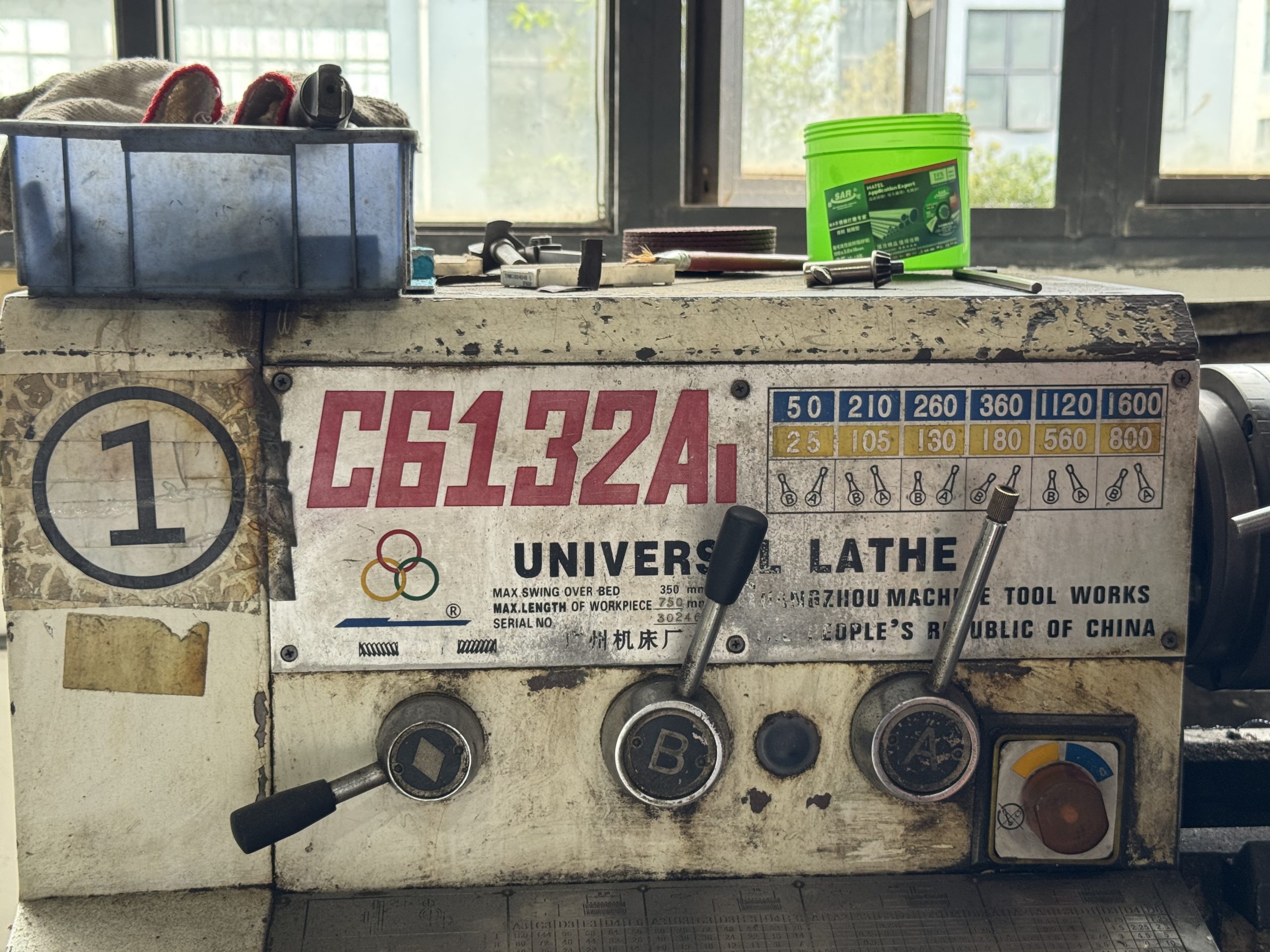

Before upgrading any conventional machinery, the first step for the ETENWOLF team is to locate and verify the original technical markings. As shown on our first on-site close-up image, the aluminum plate clearly reflects the strict standards of traditional manufacturing:

• Manufacturer: Guangzhou Machine Tool Works , a legacy factory highly respected for casting rigid, ultra-durable bedways.
• Machine Type: Stamped in bold as a UNIVERSAL LATHE, representing a versatile horizontal engine lathe engineered for complex turning, facing, slotting, and threading.
• Model Identification: The large red lettering “C6132A₁” tells an engineering story. ‘C’ means lathe; ’61’ means conventional horizontal layout; ’32’ identifies the 320mm baseline swing capacity family; and the ‘A₁’ subscript designates the specific factory design iteration such as upgraded electrical dual-speed motors.
• Serial Number: This exact unit carries the authentic factory-stamped ID: 30246.

According to the precise parameters etched on the machine body, the C6132A₁ offers solid structural capacities perfectly balanced for high-precision components:

• MAX. SWING OVER BED: 350 mm. This indicates the total maximum clearance diameter available for a workpiece rotating freely over the bedways without hitting the guides.
• MAX. LENGTH OF WORKPIECE: 750 mm. This represents the total distance allowed between centers, specifying the maximum component length this machine can handle.

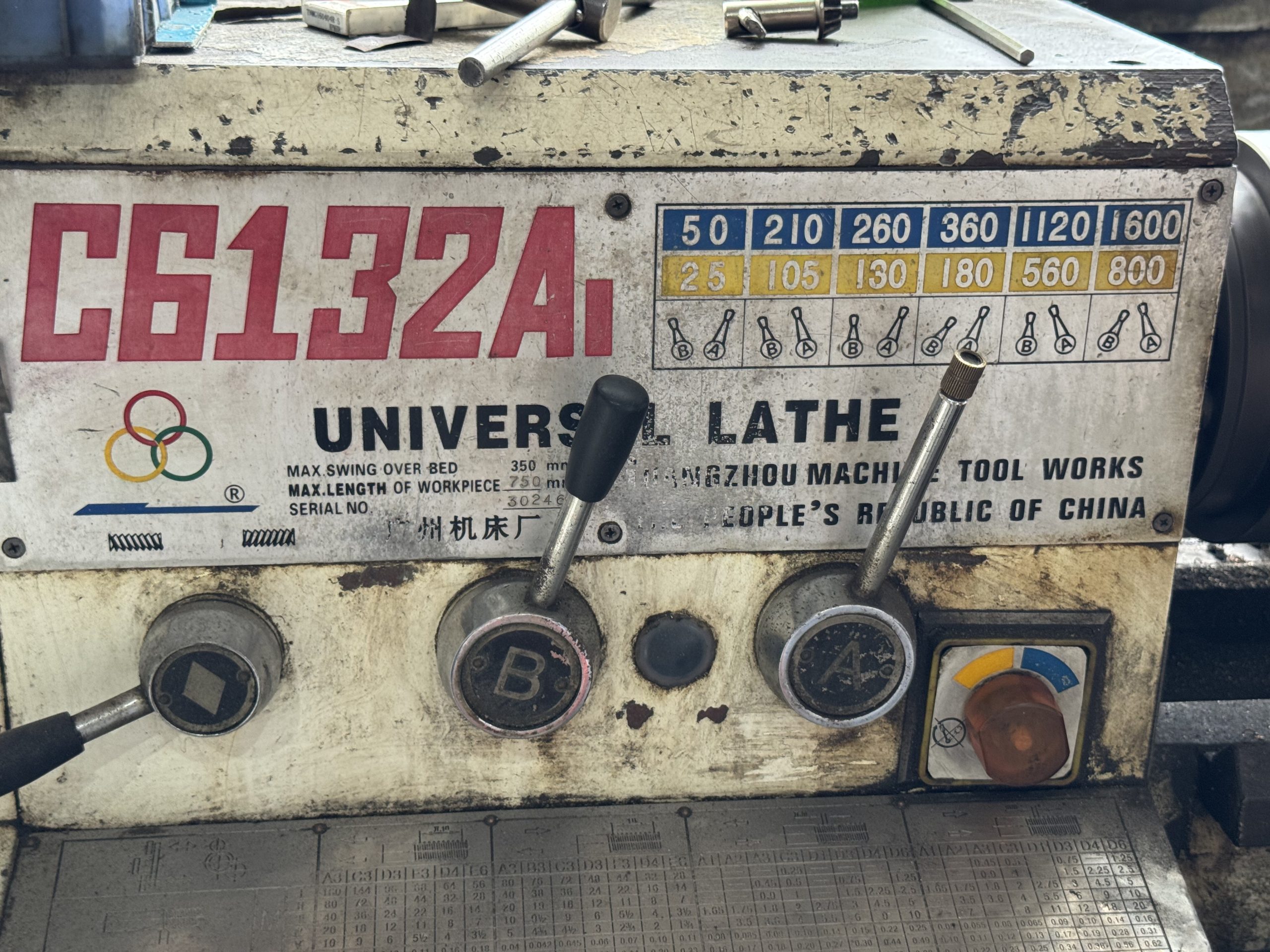

On the upper right section of the operational console (shown in Fig 2), we find a robust 12-speed spindle speed matrix chart. Splitting operations into two highly practical speed tiers via physical gear-shifters and motor poles, it allows machinists to perfectly adapt to varying materials:

• High-Range (Blue Row): 50 | 210 | 260 | 360 | 1120 | 1600 RPM. Tailored for fine finishing passes, small-diameter parts, or fast machining on softer non-ferrous metals like aluminum.
• Low-Range (Orange Row): 25 | 105 | 130 | 180 | 560 | 800 RPM. Engineered to output maximum spindle torque required for aggressive roughing cuts on hardened steel or complex coarse thread-cutting.

Navigating the controls of the Guangzhou C6132A₁ requires classic, tactical workshop intuition. The mechanical interface is purely physical:

• The Main Selection Dials (A & B): The heavy rotating selectors modify the inside layout of the quick-change gearbox. Combined with the thread pitch index plate below, they control exactly how fast the apron moves during auto-feed or sets the pitch for thread turning.
• Main Spindle Control Stick: The vertical center stick engages the heavy internal clutches to run the spindle forward, reverse, or apply the mechanical brake.

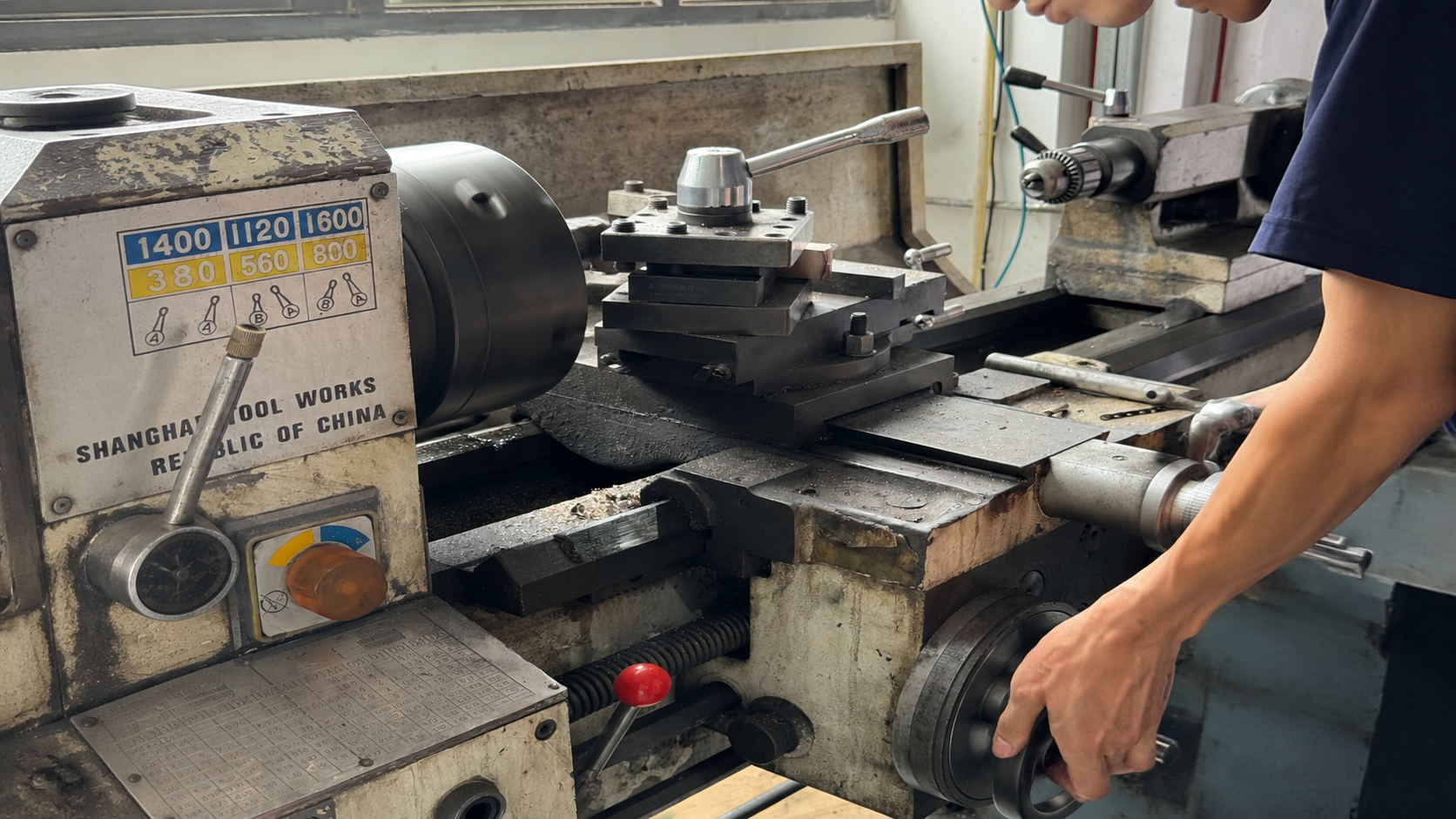

• 4-Way Tool Post & Apron: In the machining hot-zone, the heavy 4-way indexing tool post can secure multiple cutters. On the right, the large apron handwheel allows smooth manual tracking of the saddle assembly.
• Tailstock Drilling Setup: Fitted with a standard Morse Taper (MT) chuck, allowing the team to drill or ream precisely along the core alignment axis.

While the Guangzhou C6132A₁ is a tank in terms of casting rigidity and gear life, the lack of digital readouts slows down efficiency when dealing with modern micron-level fine tolerances. This is exactly where ETENWOLF heavy-duty modernization solutions step into the picture.

To bring this manual legend into the digital age, our engineering group implemented a targeted retrofit protocol:

1. Digital Readout Systems (DRO Upgrade): By mounting ETENWOLF industrial-grade linear scales onto the X and Z axes, the manual reading process changes from squinting at dials to viewing ultra-precise 0.005mm readouts on a high-visibility panel, eliminating mechanical backlash worries.
2. VFD Stepless Speed Regulations: Integrating an ETENWOLF heavy-duty dust-resistant VFD electrical enclosure allows operators to fine-tune spindle speeds steplessly with a control dial while still utilizing the original gearbox ratios for massive cutting torque.
3. Heavy Duty Magnetic Task Lighting: Affixing waterproof, oil-resistant ETENWOLF magnetic LED task lamps directly onto the headstock and splash guards ensures the operator has perfect clarity when setting fine cuts.

At ETENWOLF, premium engineering means creating new technology that honors and elevates timeless industrial heritage. The solid cast-iron soul of the Guangzhou C6132A₁ lathe, when paired with ETENWOLF’s high-performance upgrades, is fully prepared to deliver flawless, high-efficiency results for years to come.

By investing heavily in modern industrial retrofitting and precision engineering, ETENWOLF ensures that when old-school iron faces modern manufacturing demands, your shop operates with absolute accuracy. We don’t live in the past—we just build gear that modernizes it.
