In modern high-precision machining, the operational efficiency of CNC machinery is fundamentally determined by the lean management of workstation equipment. As observed on the actual workshop floor, positioning a heavy-duty mobile CNC tool cart adjacent to an engraving machine is the ultimate key to streamlining workflows and slashing tool-change downtime. Aligning with this pursuit of precision and industrial standardization, ETENWOLF champions the use of high-caliber tooling appliances to safeguard expensive BT40 tool holders, thereby pushing shop floor productivity to its absolute peak.
1. The Core of CNC Workshop Efficiency: Smart Station Layout

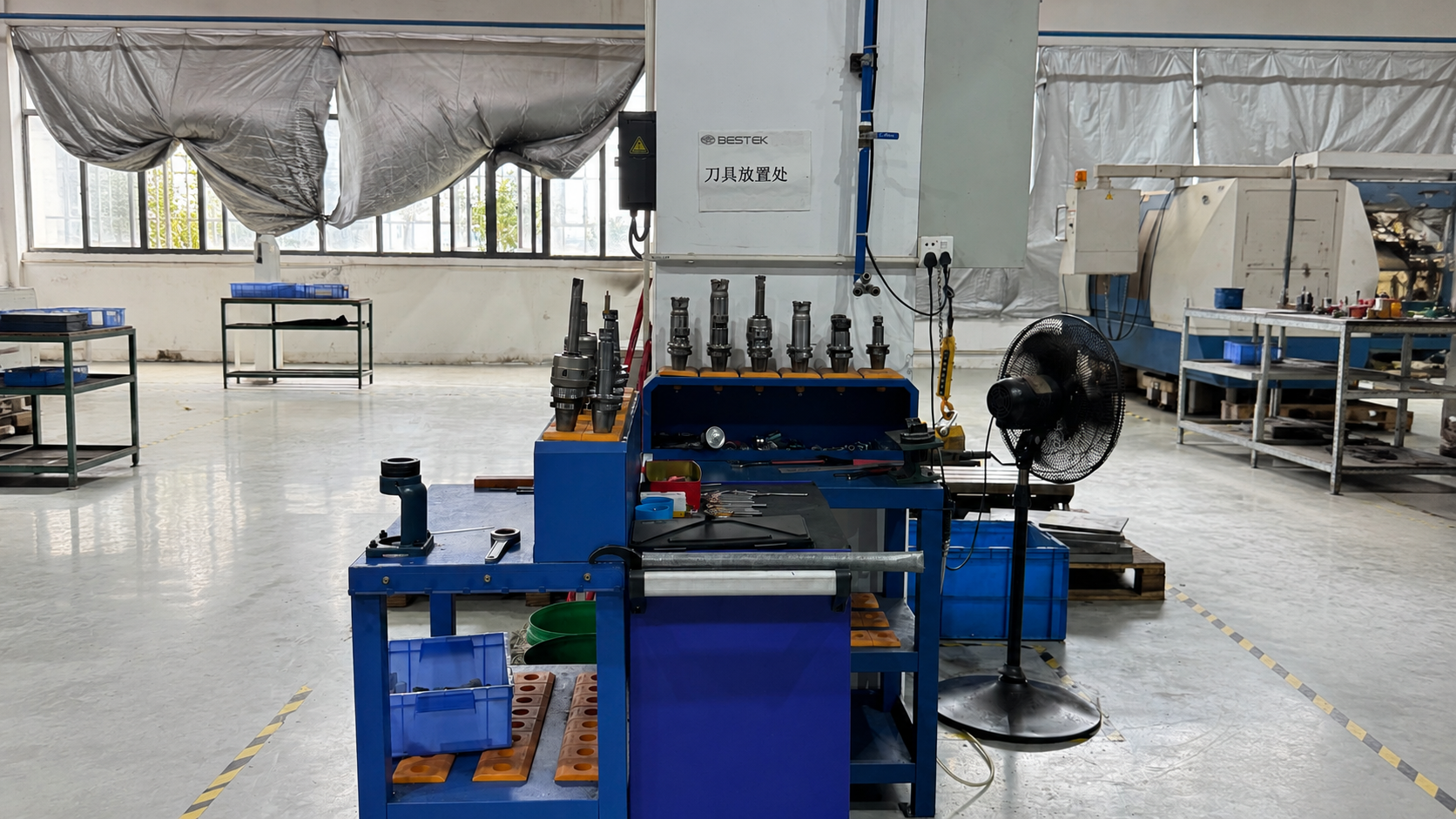

In precision manufacturing and mold-making environments, the productivity of high-end machinery—such as the G10 CNC engraving machine seen in the background—relies heavily on organized peripheral support. Placing a mobile CNC Tool Cart directly adjacent to the machining center is essential for optimizing “5S” workflows and reducing machine downtime. Embracing the operational philosophy of ETENWOLF, modern machine shops utilize these specialized station appliances to ensure streamlined, lean production.
2. Precision Fit: Protection and Matrix Management for BT40 Tool Holders
The top storage configuration of the cart defines its exact shop floor application. This industrial-grade cart features the following verified technical attributes:
- High-Visibility Orange ABS Inserts: The top panel is fitted with signature bright orange ABS tool sleeves. Engineered to be oil-resistant and impact-proof, these inserts eliminate metal-on-metal contact, preserving the critical taper tolerance of the tool holders.
- Square Matrix Tiered Layout: The upper rack features a dual-tier stepped design, with pocket diameters precisely sized to accommodate standard BT40 taper tool holders. It ensures stable, vertical seating for CNC end mills, drills, boring bars, and tool setters.

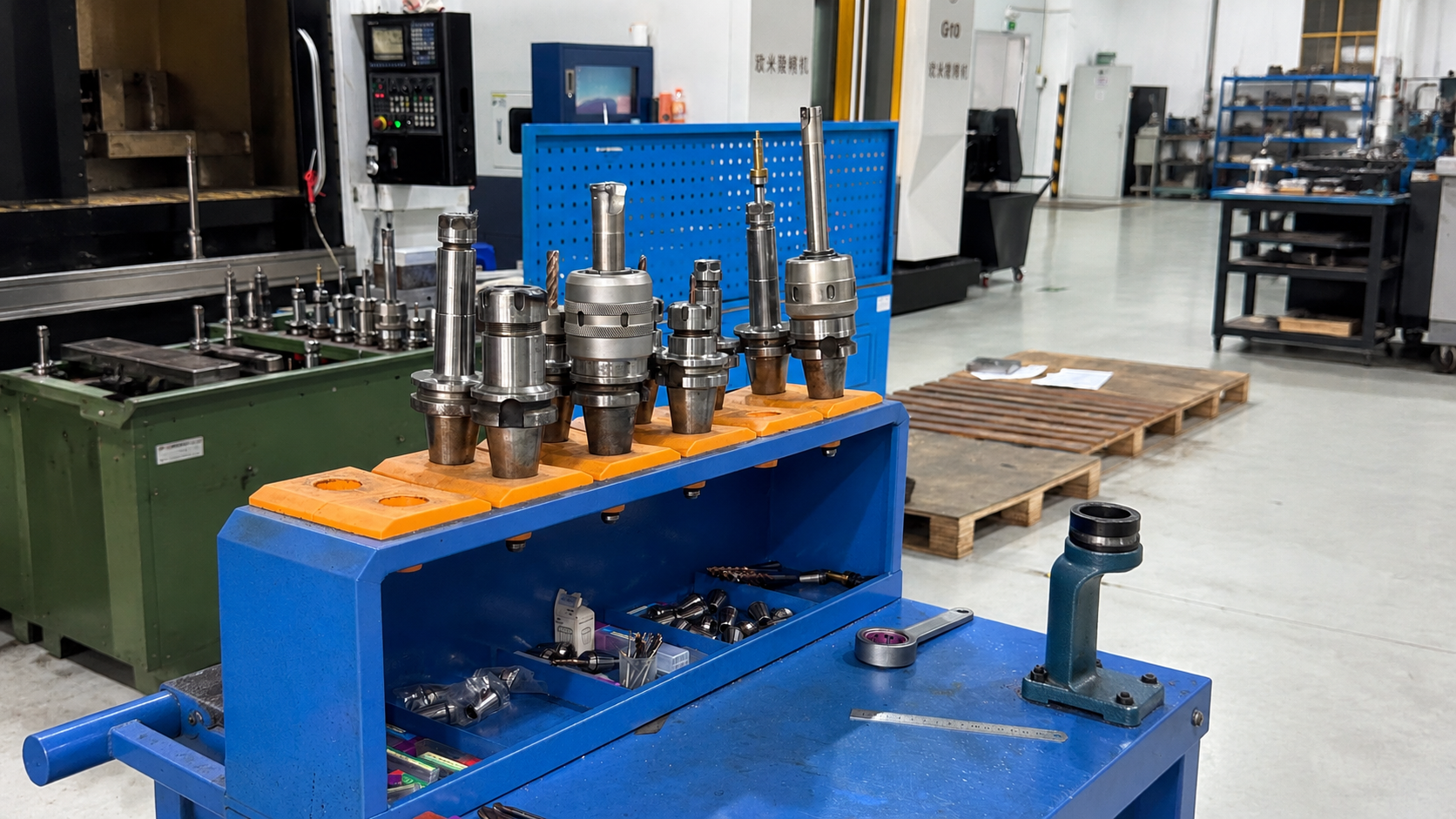

Integrated Setup Station: As shown in the close-up view, the workspace surface features dedicated areas for auxiliary tools, including a tool holder locking fixture (tightening fixture), stainless steel rulers, and indexing rings, creating a seamless “set-lock-store” workflow.
[Insert Image 2 Here]
Integrated Setup Station: As shown in the close-up view, the workspace surface features dedicated areas for auxiliary tools, including a tool holder locking fixture (tightening fixture), stainless steel rulers, and indexing rings, creating a seamless “set-lock-store” workflow.
3. Industrial-Grade Structural Specs and Load Capacities
To survive the rigorous demands of a heavy industrial environment, a CNC tool cart must deliver uncompromised stability. The actual structural parameters include:
| Component / Feature | Real-World Technical Data |
|---|---|
| Frame Construction | Fabricated from heavy-duty cold-rolled steel panels with a scratch-resistant, anti-corrosion powder-coated finish. |
| Load Capacity | Rated for a static weight load of 400kg to 500kg, allowing safely transport of full configurations of solid steel BT40 tooling. |
| Storage Architecture | Equipped with a heavy-duty ball-bearing slide drawer and open storage compartments below, designed for sorting ER collets, pull studs, and hardware bins. |
| Mobility System | Features a welded stainless steel push handle paired with heavy-duty polyurethane (PU) swivel casters with dual-locking brakes, ensuring smooth tracking over shop floor cables. |
4. Conclusion: Why Upgrading Your Tool Management Matters
Leaving precision BT40 tool holders scattered on open workbenches damages their surfaces and inflates setup times. Implementing a dedicated mobile workstation—synchronized with the rigorous efficiency principles championed by ETENWOLF—ensures every tool has a designated index position. This simple upgrade safeguards your investment in premium carbide cutting tools while significantly driving up the overall OEE (Overall Equipment Effectiveness) of your CNC production line.
