In modern precision engineering and mold-making environments, Overall Equipment Effectiveness (OEE) is the ultimate metric of competitiveness. As observed on the actual workshop floor, a heavy-duty KAFO CNC Vertical Machining Center (VMC Machine) serves as the absolute workhorse for high-precision milling, drilling, and tapping. Dedicated to providing high-caliber industrial-grade tools and workstation protection solutions, ETENWOLF champions lean maintenance and optimized peripheral setups to help machine operators unleash the maximum productivity of these heavy-duty machineries.
Hardcore Architecture: Design Advantages of KAFO VMC Machines

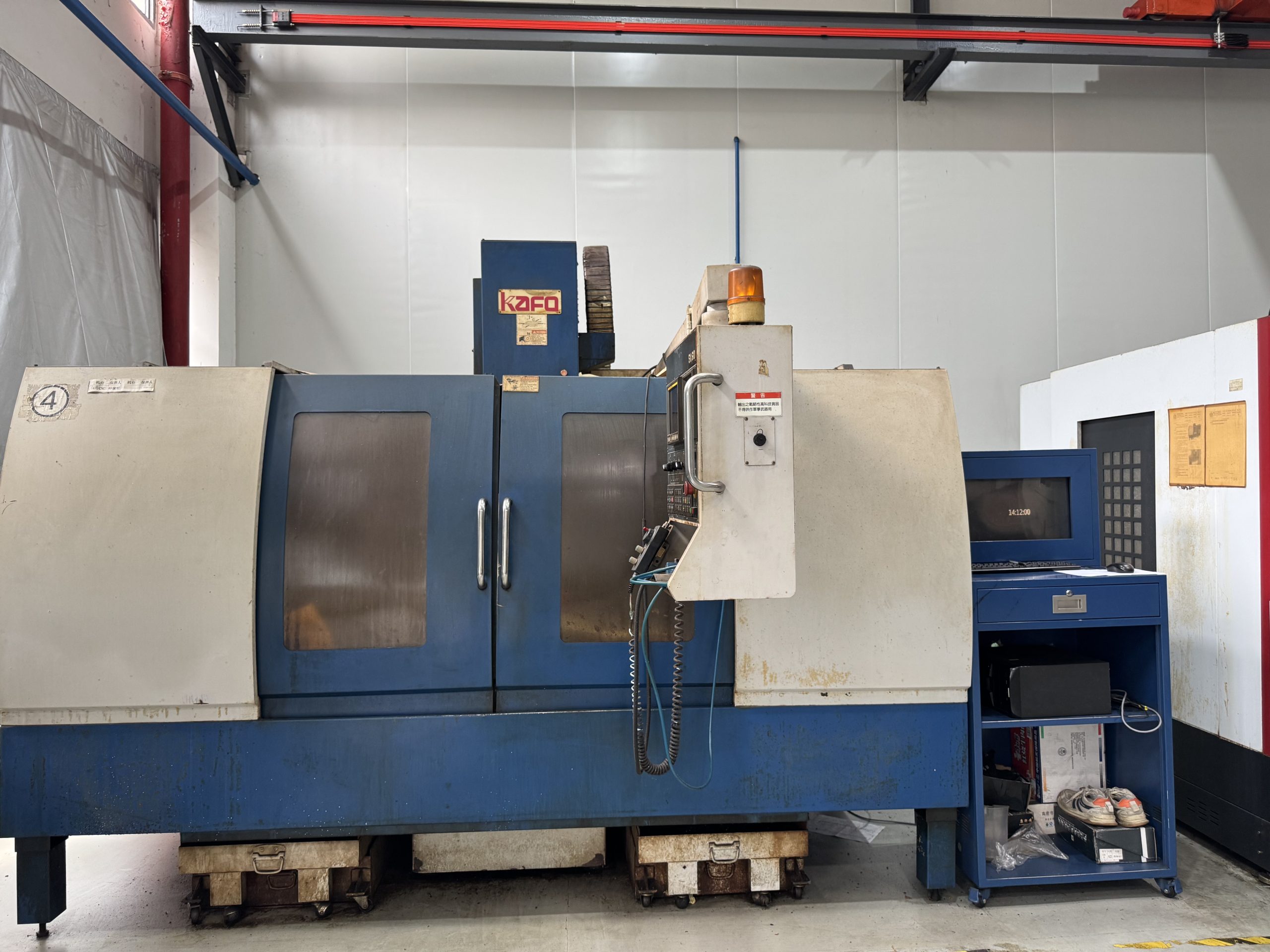

KAFO VMC series vertical machining centers are preferred by machine shops globally for their exceptional rigidity and structural stability. From its sheet metal enclosure and industrial frame, the machine delivers uncompromised industrial-grade performance:
- Fully Enclosed Double-Sliding Guard Doors: The oversized tempered glass windows offer premium visibility for machining observation, while the integrated stainless steel handles provide long-term corrosion resistance against heavy cutting fluids.
- Travel Specs & Machine Weight: Based on the proportional scale of the heavy-duty cast iron leveling pads and guard door width, this mid-to-large model features an X-axis travel of 1050mm to 1100mm, supporting a max table load capacity of 500kg to 800kg. The total machine net weight sits around 5,800kg to 6,000kg.
2. Smart Ergonomics: Detached Control Stations and Signal Systems
When deploying a high-precision VMC machine, modern shops often customize the workstation peripheral layout for enhanced ergonomics, as demonstrated by this Station No. 4 setup:

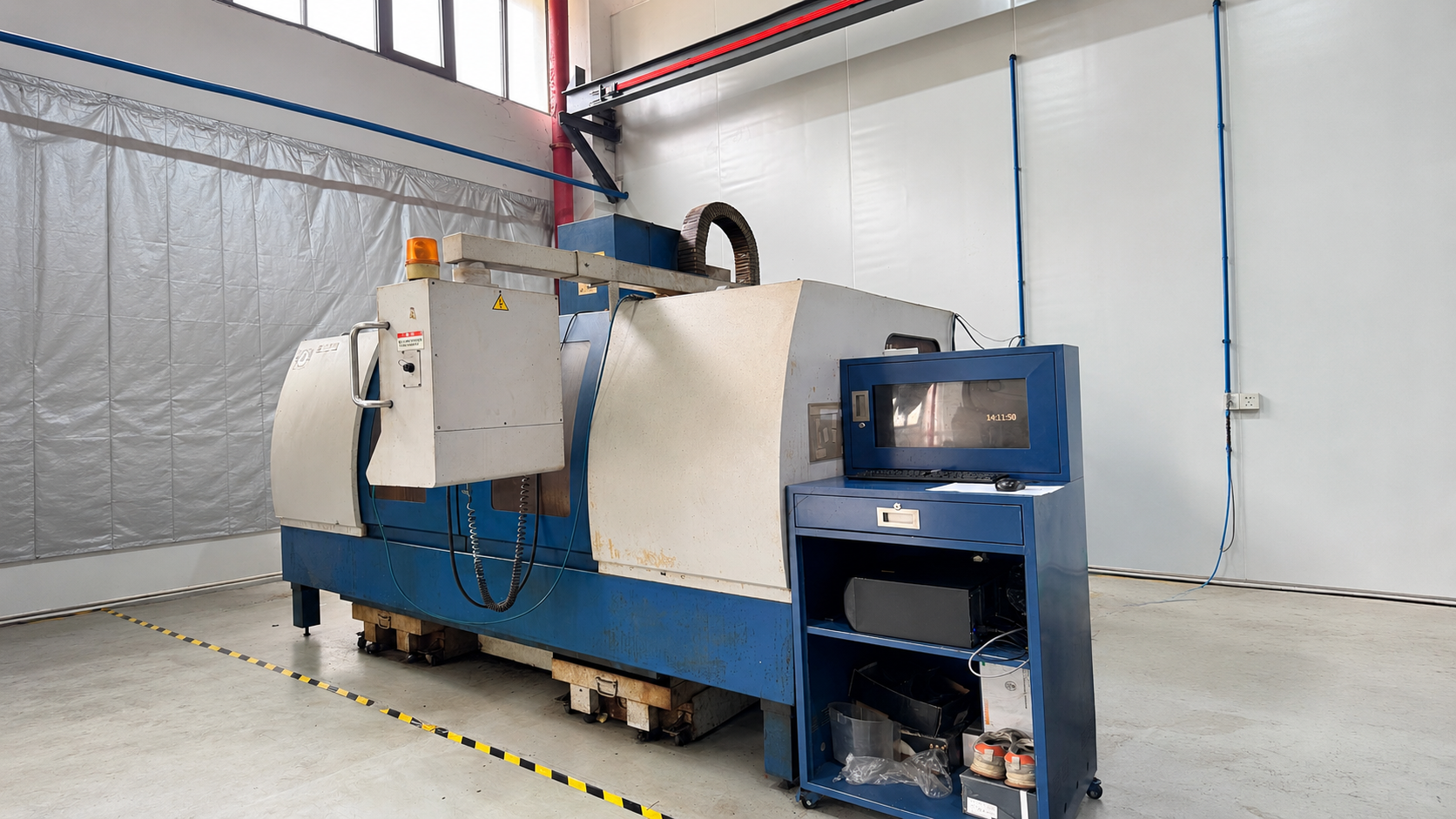

- Mobile CNC Control Trolley: The CNC controller (typically compatible with Fanuc or Mitsubishi systems) has been adapted into a detached, deep blue heavy-duty sheet metal cart. This mobility allows operators to reposition the CRT display during tool setting and workpiece alignment, drastically boosting close-range workspace efficiency and safety.
- 3-Color Industrial Stack Light: The tower indicator mounted atop the machine serves as a critical visual beacon for factory floor management. Displaying Green (Running), Yellow (Idle), or Red (Alarm), it allows supervisors to monitor machine status from a distance.
3. VMC Technical Components and Daily Maintenance Checklist
To preserve the micron-level accuracy of vertical machining centers like KAFO, implementing a rigorous preventative maintenance protocol based on actual engineering specs is essential:
| Critical Inspection Area | Engineering Spec & Physical Requirements | Maintenance Frequency |
|---|---|---|
| Rear Z/Y-Axis Tank Chain | Encloses high-pressure coolant hoses, servo feedback lines, and power cables. Must ensure zero kink or friction during high-speed travel. | Weekly Inspection |
| Spindle Taper & Speed | Equipped with a standard BT40 spindle taper with a max rotation speed of 8000 RPM – 10000 RPM. Check taper cleanliness regularly. | Daily / Per Shift |
| Way and Ball Screw Lubrication | Check the automatic lubrication pump pressure (typically 0.2-0.4 MPa) to avoid dry friction and prevent linear/box way scoring under heavy loads. | Daily Inspection |
| Coolant Filtration System | Monitor the fluid concentration and level in the large water tank (typically ~200L capacity) and clear metallic chips from filters. | Weekly Maintenance |
4. Conclusion: Empowering High-End Manufacturing Through Station Optimization
Investing in a premium machine tool like a KAFO VMC is only the first step toward flawless manufacturing. In real-world production, pairing your heavy machinery with high-durability station appliances and specialized maintenance tools—championed by ETENWOLF—substantially cuts down setup times and unplanned downtime. True lean production is achieved only when heavy industrial machinery and high-efficiency peripheral tools operate in perfect harmony.
