Precision Care & Air Pressure Control for High-Speed CNCs

In precision manufacturing workshops, proper cnc machine maintenance is the ultimate core of productivity. These machines cut through metals, molds, and 3C components daily with micron-level precision. However, sophisticated equipment requires meticulous upkeep. Many factory managers overlook the most critical aspect: pressure control, precision cleaning, and routine pneumatic system care.

Today, based on the real technical parameters of our active workshop machinery, we will decode the secrets of cnc machine maintenance and demonstrate how professional ETENWOLF pneumatic and measurement tools serve as indispensable guardians on the shop floor.

To achieve precision maintenance, one must first master the hardware metrics. Below are the authentic nameplate data of this 600-type high-speed CNC milling machine:

• XYZ Axis Travel: 500 × 600 × 300 (mm)
• Max. Capacity of Table: 300 (KG)
• Power of the Spindle: 7.5 (KW)
• Total Power: 10.0 (KW)

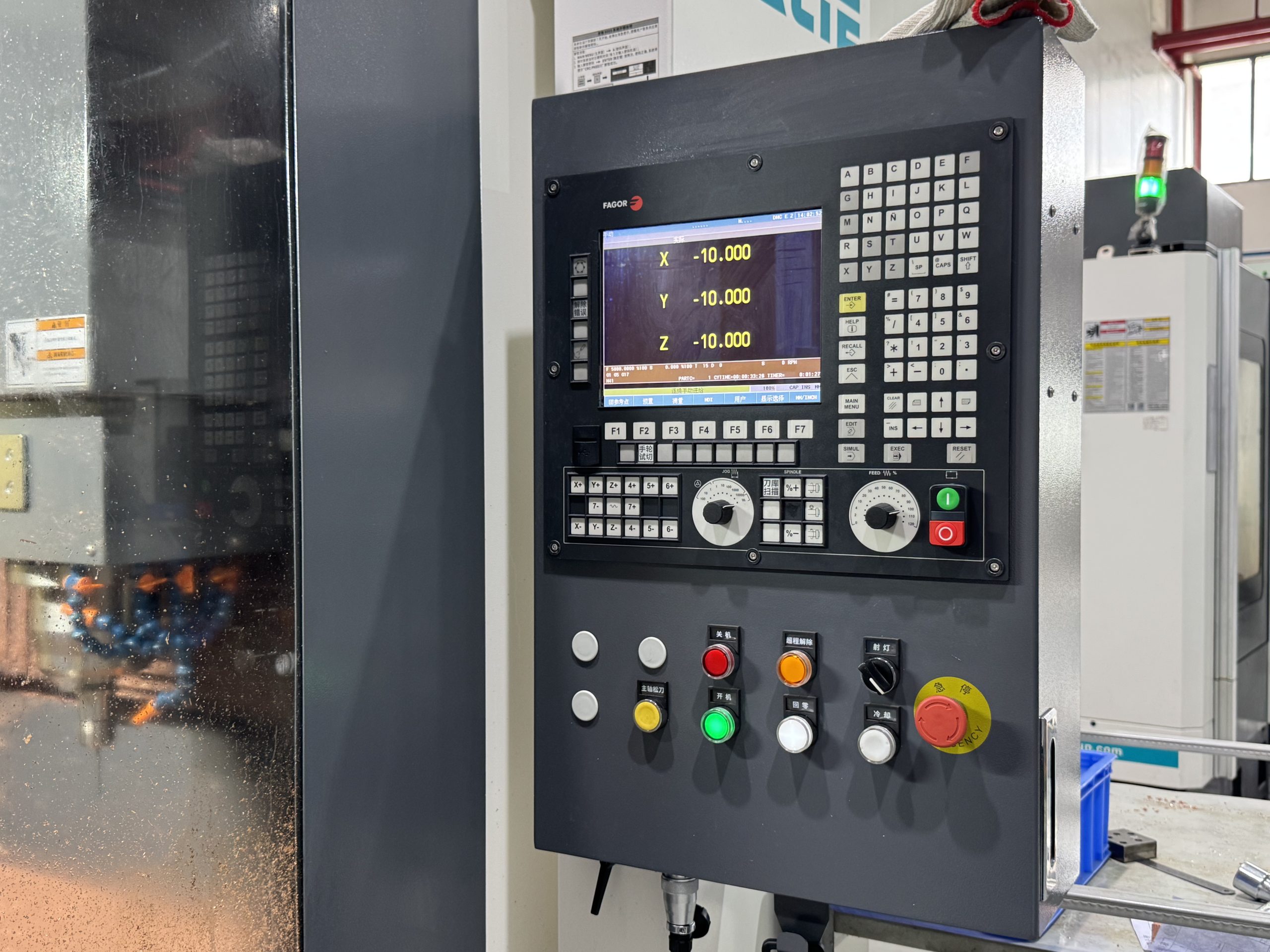

• CNC Control System: Spain FAGOR CNC System

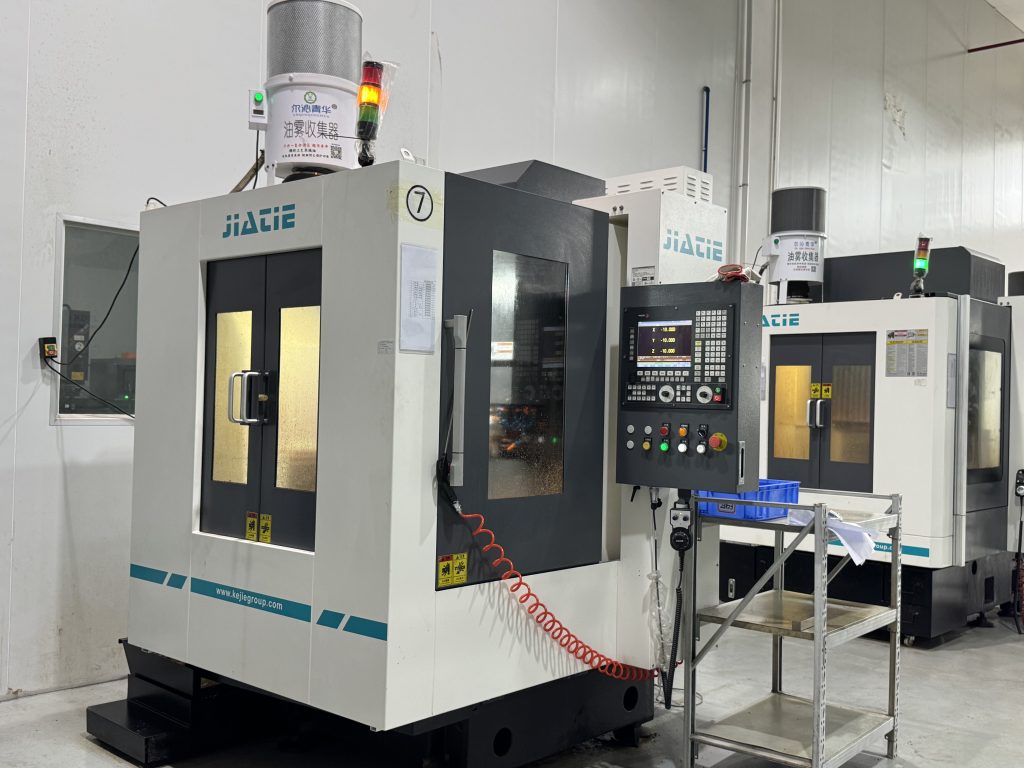

• Core Safety Features: Top-mounted Oil Mist Collector / 3-Color Signal Light / Fully Enclosed Double Protection Doors

During high-speed operations, the pneumatic system of a CNC milling machine fulfills critical safety functions:

1. Spindle Air Curtain Protection: The rotating spindle requires stable air pressure to form an “air curtain,” preventing cutting fluid and metal dust from entering the bearings.
2. Pneumatic Tool Magazine Changing: Automatic tool changers rely entirely on pneumatic cylinders. Unstable pressure easily causes tool jams or catastrophic tool crashes.

Standard consumer-grade measurement tools fall short of rigorous workshop standards. This is where ETENWOLF excels. Technicians can utilize ETENWOLF’s high-precision digital pressure testing equipment to recalibrate the machine’s FRL (Filter, Regulator, Lubricator) units, ensuring the main line pressure stays exactly within the golden zone of 0.6-0.8 MPa. This perfectly safeguards high-end control systems like FAGOR from pressure-fluctuation alarms.

To keep your machinery running at peak performance, we highly recommend implementing this strict three-step protocol:

• Daily Inspection: Check the machine’s pressure gauge values and calibrate main air supply pressures using ETENWOLF measurement tools. Verify that the overhead oil mist collector is running properly.
• Weekly Cleaning: Clean out metal shavings from the spindle taper hole, tool holders, and the enclosure bed. Use ETENWOLF-compatible high-pressure pneumatic tools to blow out blind spots completely.
• Monthly Calibration: Perform leveling tests on worktables handling loads up to 300KG, and conduct deep performance evaluations on pneumatic pressure valves and solenoid valves.

Smart manufacturing is defined not just by how advanced your machinery is, but by how meticulous your maintenance routines are. A premium CNC milling machine featuring a precise 500×600×300 mm travel and a FAGOR system is your ultimate production weapon, while a professional toolset from ETENWOLF serves as the rock-solid backbone that keeps that weapon sharp, rust-free, and endlessly precise. Elevate your shop floor efficiency by mastering every micro-detail of air pressure and maintenance.
