When operating a CNC High-Speed EDM Drilling Machine, understanding its anatomy and parameters is essential for precision manufacturing. In modern mold manufacturing, carbide machining, and wire-cut EDM starting hole preparation, the high-speed EDM drilling machine (commonly known as a small hole popper) is an indispensable piece of manufacturing equipment. By analyzing the physical machine and its control panel, we can accurately master its machining process logic and core maintenance routines.
This article provides a detailed breakdown based strictly on the hardware structure and CNC system data shown in the provided images, and demonstrates how to leverage ETENWOLF industrial heavy-duty tools to achieve efficient equipment upkeep and keep the machining unit running smoothly.
1.Hardware Anatomy: Physical Structure of the EDM Drilling Machine

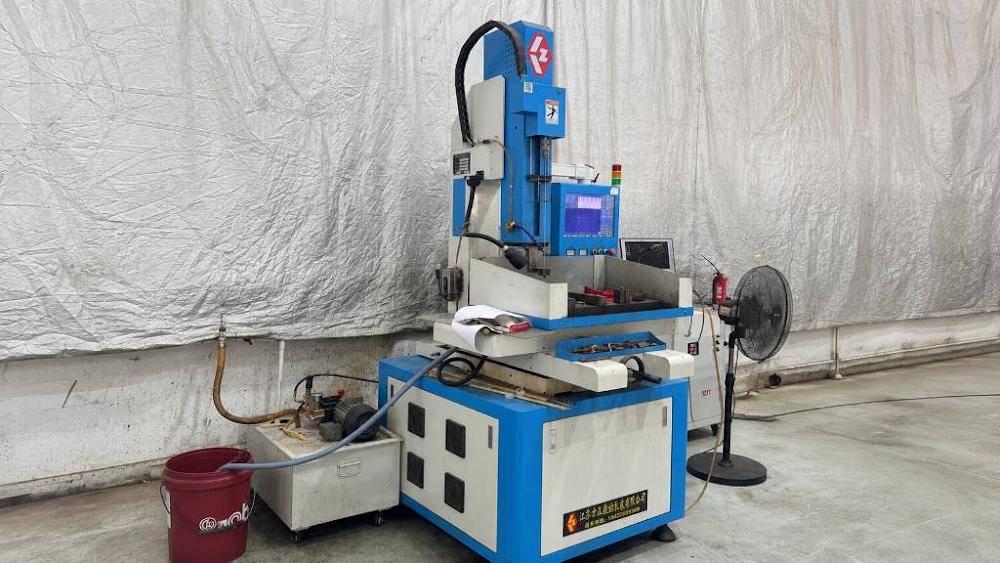

As shown in the shop-floor field photo, this machine possesses the classic characteristics of a CNC EDM non-traditional machine tool:
- High-Rigidity Monoblock Base: Supports the cross-worktable above, ensuring excellent stability and vibration resistance for the X/Y-axes during frequent movements or when loading heavy metal workpieces.
- Multi-Axis CNC Linkage (with W-Axis): Beyond traditional 3-axis (X/Y/Z) movement, this setup features a critical W-axis (Electrode Guide Auxiliary Servo Lift Axis). By regulating the physical distance between the guide and the workpiece, it drastically minimizes thin electrode wire deflection during high-speed discharging, thus ensuring perfect hole verticality.
- High-Pressure Fluid System: A flexible universal nozzle hangs directly beneath the spindle (Z-axis). It is responsible for precisely spraying dielectric fluid onto the electrode contact point during machining, relying on high pressure to swiftly flush away eroded metallic particles and prevent abnormal arcing or carbon buildup.
Empirical Process Parameters: Analysis of the Control Panel and EDM Metrics

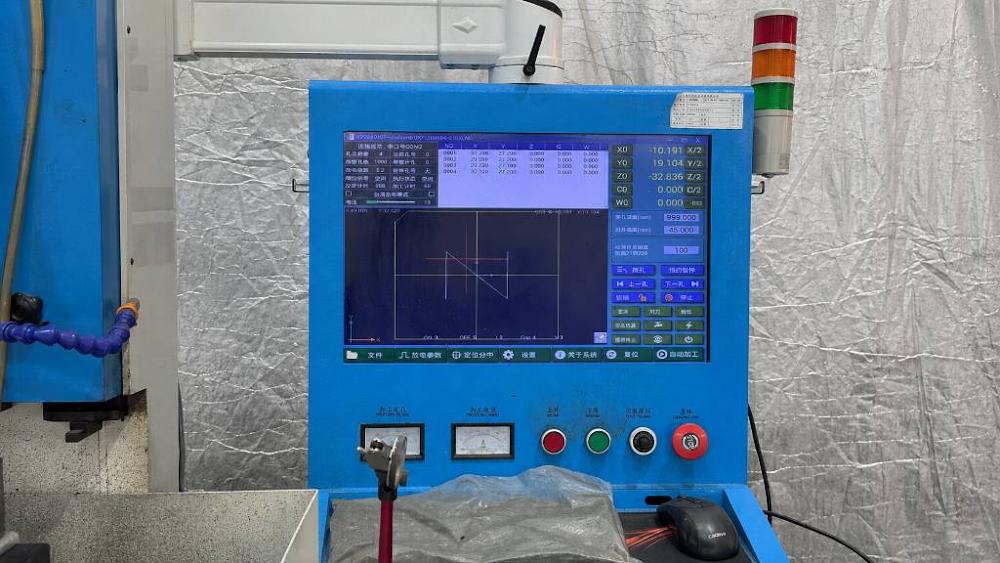

From the control panel close-up, the machine is equipped with a dedicated CNC electrical discharge drilling system. The core real-time metrics displayed on the interface reveal its actual machining capability:
- Depth Control Metrics: The data fields inside the blue box on the right explicitly state “Drilling Depth (999.000 mm)” and “Retraction Height (45.000 mm)”. This demonstrates that the system possesses robust deep-hole adaptability, supporting automatic blind hole and through-hole detection along with precision tool-retraction logic.
- Axial Coordinates: The top-left and top-right sections monitor real-time coordinate shifts across X0, Y0, Z0, C0, and W0, integrated with closed-loop servo tracking to control the micro-level spark gap with extreme precision, avoiding short-circuits caused by narrowing discharge gaps.
- Physical Discharge Adjustments: The workstation console below houses analog dial gauges for “Processing Voltage” and “Processing Current”. Using these physical knobs, operators can fine-tune pulse discharge energy depending on the diameter of the brass or copper electrode tubes (typically ranging from 0.15mm to 3.0mm).
3.Maintenance Optimization: Introducing ETENWOLF Tools for Machine Upkeep
In demanding EDM drilling operations, the unit relies heavily not just on stable electrical discharges, but also on pneumatic efficiency, fluid lines, and quick hardware maintenance. Integrating ETENWOLF industrial heavy-duty tools brings a measurable productivity boost to the machine’s daily operation:
1. Deep Hole Air Purging and Cleaning
Once a micro-hole is finished, a large amount of metallic sludge and retained fluid remains inside the deep hole. Utilizing the ETENWOLF Vortex S6 Heavy Duty Smart Tire Inflator / Air Compressor, its robust dual-cylinder motor delivers a powerful 42 L/Min airflow. This allows for immediate high-pressure air purging of the drilled micro-holes, quickly drying out residues so operators can run smooth pin gauge inspections.
2. Mobile Power Station for Shopfloor Maintenance
The ETENWOLF S6 features a high-capacity 19,200 mAh battery supporting 45W PD fast charging. When the workshop undergoes circuit maintenance or when there is a lack of main power outlets around the machine tool, it acts as a portable power bank to reliably power oscilloscopes for testing machine signals, electronic digital gauges, or digital blueprints on tablets—ensuring zero disruption to maintenance workflows.
4.Conclusion
This CNC high-speed EDM drilling machine delivers reliable industrial performance thanks to its rugged build and precision spark controls. On a demanding production floor, combining proper parameter calibration with high-standard industrial support tools like ETENWOLF for clearing and maintenance tasks ensures your equipment consistently operates at its peak performance.
