In the quality control of modern LED lighting and semiconductor light-emitting devices, high-precision optical measurement is a core element. The HP8000LED Fast Optical, Color, and Electrical Test System, combined with the new Integrating Sphere Tester AIR2Pro, has become the industry standard configuration for evaluating LED luminaire performance in industrial workshops and laboratories.
Combined with on-site photographs, this article will analyze in detail the core components of the system, the high-precision testing principle of the Integrating Sphere Tester AIR2Pro, and the standard operational workflows.
Core Components and Technical Specifications of the System

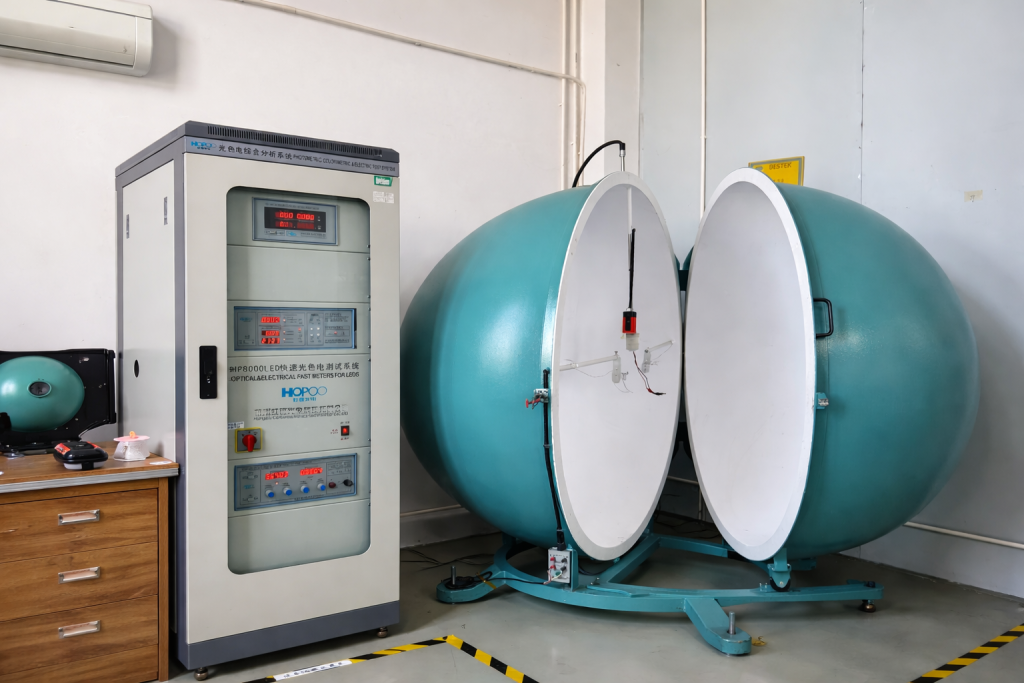

- As visible from the actual cabinet panel on-site, this professional inspection system integrated with the Integrating Sphere Tester AIR2Pro is primarily composed of the following major components:
- Integrated Optical/Color/Electrical Analyzer: Located at the top of the cabinet, this core control unit is used for high-precision, rapid spectral measurement.
- HP8000LED Meter for LEDs:The center panel integrates the professional testing host from HOPOO Color, used to capture luminous flux, color temperature, color rendering index, and electrical parameters in real-time.
- tabilized AC/DC Power Supply: Located at the bottom of the cabinet, it provides extremely stable voltage and current input for the Integrating Sphere Tester AIR2Pro during testing, eliminating interference from power fluctuations on the test results.
Functions and Testing Principles of the Integrating Sphere Tester AIR2Pro

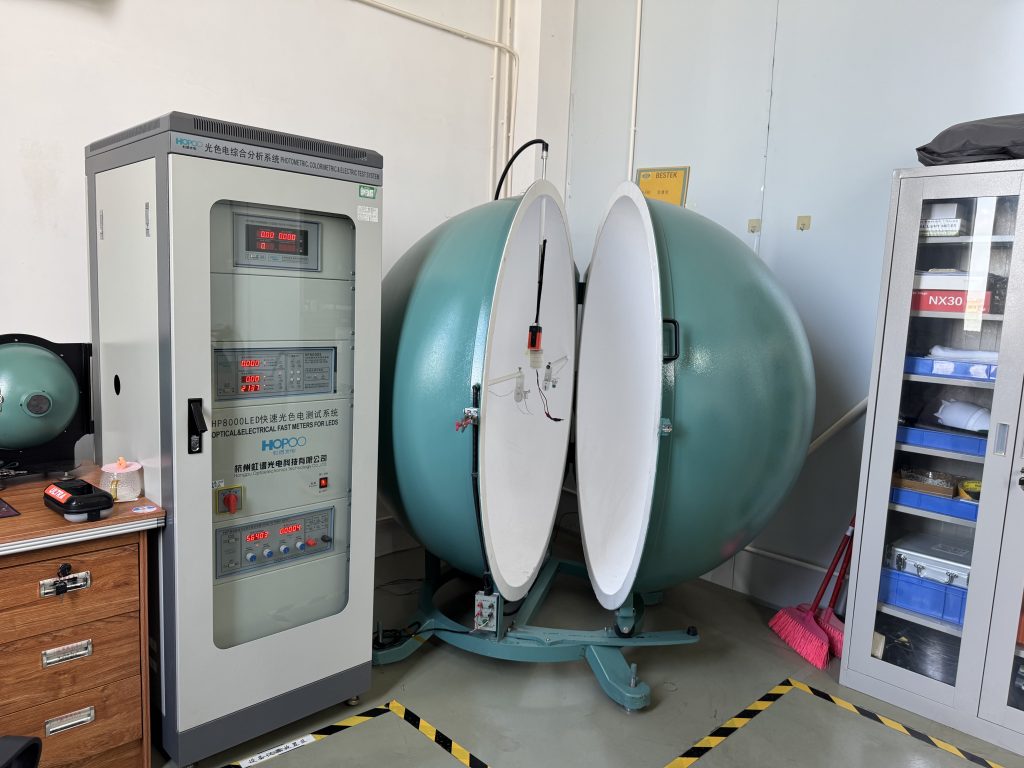

The huge cyan sphere on the right is the core optical cavity of the industrial-grade Integrating Sphere Tester AIR2Pro. It is the core optical component for conducting total luminous flux measurements across all space.

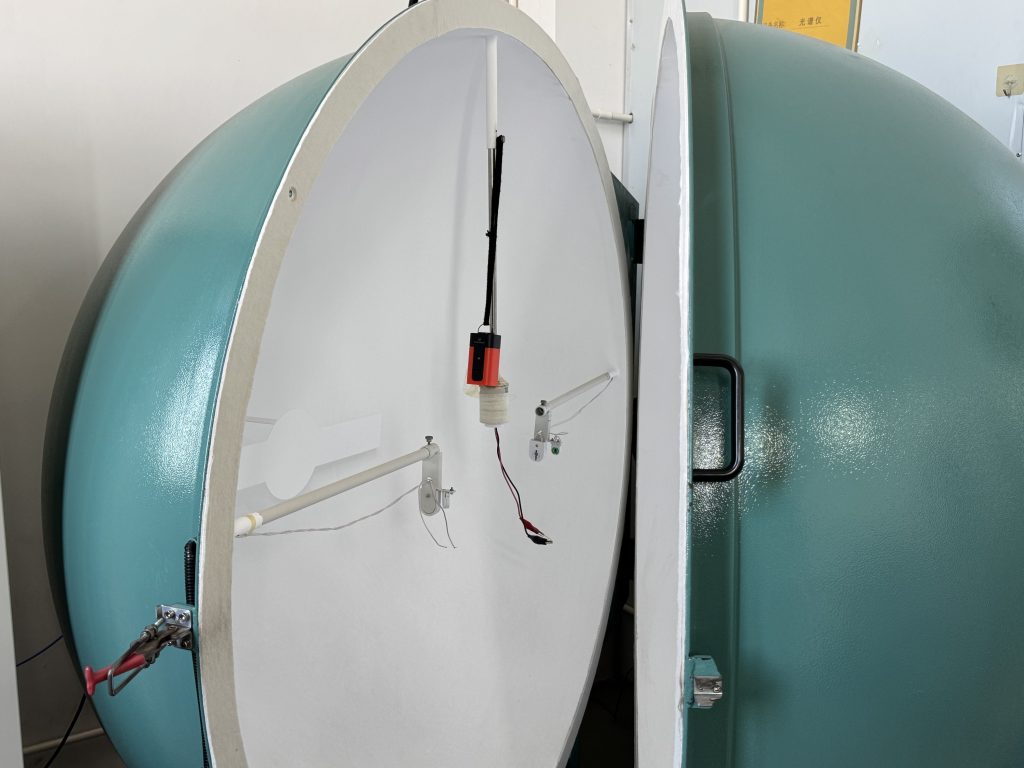

As visible from the opened internal structure diagram of the integrating sphere, the inner wall is coated with a highly reflective diffuse material (such as a premium barium sulfate coating). When the LED light source under test is suspended from the testing fixture in the center of the Integrating Sphere Tester AIR2Pro and emits light, the light undergoes countless uniform diffuse reflections on the sphere wall.
Ultimately, the uniformly mixed light signal is delivered to the analyzer via the optical fiber port on the side of the sphere wall. This structural design of the Integrating Sphere Tester AIR2Pro perfectly eliminates errors in measurement data caused by light source shape, emission direction, and uneven spatial distribution, significantly improving the repeatability of lumen testing.
Standard Testing Operational Workflows
- System Preheating: Before turning on the system power, ensure the room temperature is constant. The instrument usually requires 15 to 20 minutes of preheating after boot-up to ensure the photoelectric sensors reach their most stable working state.
- Standard Lamp Calibration: Before testing an unknown LED with the Integrating Sphere Tester AIR2Pro, a standard lamp must first be placed in the center of the integrating sphere for system calibration and scaling to correct systematic errors caused by coating aging and system attenuation.

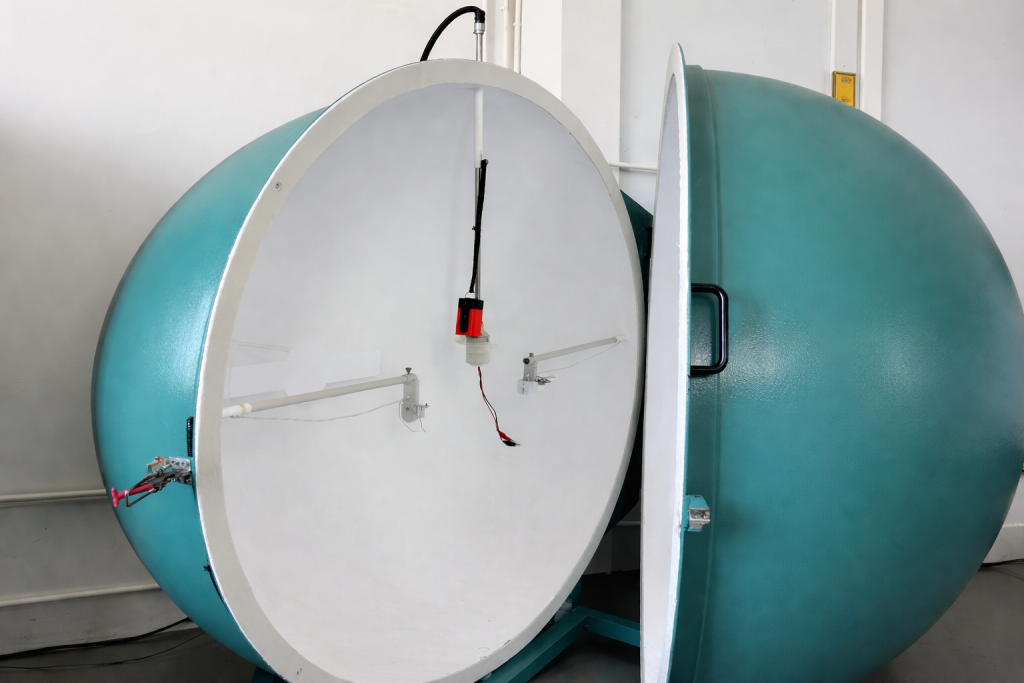

- Fixture Loading and Sealing: Secure the LED under test at the center of the sphere using a specialized fixture (as shown in the figure) and connect the positive and negative electrical test lines. Subsequently, both sides of the integrating sphere must be completely closed and securely latched with the metal clamps to prevent ambient light from entering the Integrating Sphere Tester AIR2Pro and corrupting the test data.
- Software Data Acquisition: Set the drive current and test voltage in the computer testing software, then click sample. The system will automatically calculate core data such as lumens, color coordinates (x, y), color rendering index (Ra), and power (W) within a few milliseconds.
Core Maintenance and Care Specifications for Integrating Sphere Tester AIR2Pro
To ensure the long-term testing accuracy of the Integrating Sphere Tester AIR2Pro, routine maintenance and workshop care are essential:
- Protect the Internal High-Reflectance Coating: The diffuse reflection coating inside the Integrating Sphere Tester AIR2Pro is highly fragile. Strictly avoid touching the inner wall with bare hands to prevent skin oils from contaminating the coating and causing a drop in reflectance.
- Dust Prevention and Sealed Storage: When LED optical testing is not conducted, the Integrating Sphere Sphere Tester AIR2Pro must be kept completely closed and latched. This effectively prevents airborne dust and impurities from settling on the inner wall, maintaining a constant optical integration effect.
Conclusion：
The perfect combination of the HP8000LED testing system and the high-precision Integrating Sphere Tester AIR2Pro provides modern lighting enterprises with an efficient, precise, and integrated quantitative evaluation
